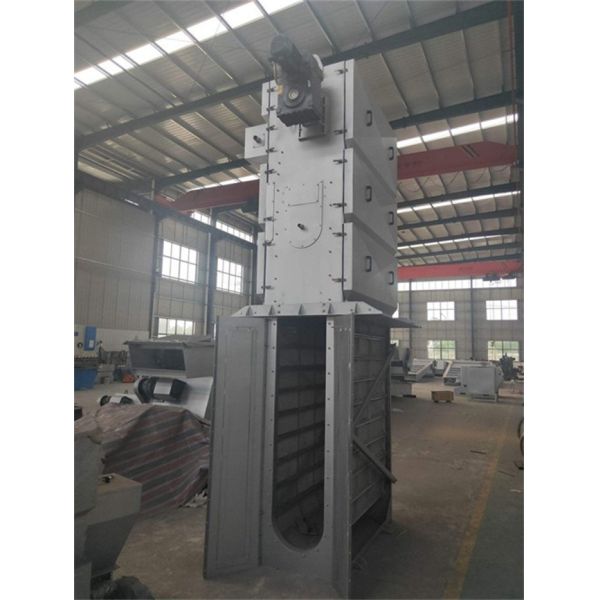

Grey Inner Flow Mesh Plate Grille Decontamination Filter Water Treatment Systems Industrial

Name: Grey Inner Flow Mesh Plate Grille Decontamination Filter Water Treatment Systems Industrial
Brand: Biocell
Price: 1 USD

China Grey Inner Flow Mesh Plate Grille Decontamination Filter Water Treatment Systems Industrial wholesale

Brand Name : Biocell

Model Number : MDS404

Certification : ISO9001

Place of Origin : Wuxi China

MOQ : 1 unit

Price : To Be Negotiated

Payment Terms : T/T, L/C

Supply Ability : 100 units per month

Delivery Time : 30-45 days

Packaging Details : Wooden Box

Product Name : Volute Sludge Dewatering Machine

Material : Stainless Steel 304

Surface Treatment : Nickle Plated

Colour : Grey

Head Type : Socket Pan Head

Power : 8.2 KW

DS Standard Capacity : 680 kg/h (High Concentration)

Sludge Treatment Capacity : 34 m3/h (20000 mg/L)

Motor : SEW Or Tsubaki Or NORD

Application : Wastewater Treatment, Pure Water Process

Function : Filtering Suspended Matter

Packing : Wooden Box

Contact Now

Inner Flow Mesh Plate Grille Decontamination Filter Equipment Screw Sludge Thickener For Filtration Wastewater Treatment

Scope Of Application

This series of products is a very reliable decontamination filtration mechanical equipment with stable operation effect and excellent performance in municipal sewage treatment and water supply treatment, various industrial sewage treatment, and other applications in the field of solid-liquid separation.

This series of products can continuously and automatically remove the solid suspended solids in the filtered water body during operation, which can not only remove the wooden wedges, branches, plastic products and other floating objects in the water body, but also effectively remove the hair and fibers in the filtered water body. It is an ideal high-efficiency pretreatment equipment for water supply and drainage systems. It has been widely used in the fields of sewage treatment, reclaimed water treatment, industrial wastewater treatment, water intake of water supply plants, and industrial water intake of power plants.

Grey Inner Flow Mesh Plate Grille Decontamination Filter Water Treatment Systems Industrial

Process Effect

Grey Inner Flow Mesh Plate Grille Decontamination Filter Water Treatment Systems Industrial

Parameters

Model	DS Standard Capacity(kg/h)		Sludge Treatment Capacity(m³/h)
Model	Low Concentration	High Concentration	2000mg/L	4000mg/L	10000mg/L	20000mg/L	25000mg/L	50000mg/L
MDS101	3	6	1.5	0.75	0.6	0.3	0.24	0.12
MDS131	6	12	3	1.5	1.2	0.6	0.48	0.24
MDS132	12	24	6	3	2.4	1.2	0.96	0.48
MDS201	12	20	6	3	2	1	0.8	0.4
MDS202	24	40	12	6	4	2	1.6	0.8
MDS301	30	60	15	7.5	6	3	2.4	1.2
MDS302	60	120	30	15	12	6	4.8	2.4
MDS303	90	180	45	22.5	18	9	7.2	3.6
MDS351	60	120	30	15	12	6	4.8	2.4
MDS352	120	240	60	30	24	12	9.6	4.8
MDS353	180	360	90	45	36	18	14.4	7.2
MDS354	240	480	120	60	48	24	19.2	9.6
MDS401	100	170	50	25	17	8.5	6.8	3.4
MDS402	200	340	100	50	34	17	13.6	6.8
MDS403	300	510	150	75	51	25.5	20.4	10.2
MDS404	400	680	200	100	68	34	27.2	13.6
